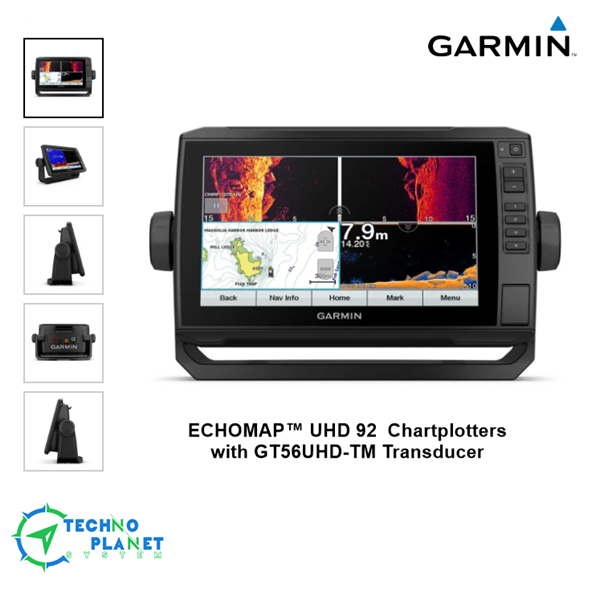

Garmin Chartplotter ECHOMAP™ UHD 92sv With GT56UHD-TM Transducer
Brand |
Garmin |
Model |
ECHOMAP UHD 92sv with worldwide basemap |
Origin |
USA |
Display Size |
9″ |
Charts and Maps |
WORLDWIDE BASEMAP |
Sonar Type |
ULTRA HIGH-DEF CLEARVÜ AND TRADITIONAL CHIRP |
Includes Transducer |
GT56UHD-TM transducer |
Availability |
Pre-Order |
Description
LESS TIME FINDING. MORE TIME FISHING.
The sunlight-readable 9” touchscreen chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar.
 |
 |
 |
 |
 |
|
See below and around your boat in incredible detail with the transducer bundle. |
Navigate any waters with optional charts and maps (sold separately). | Manage your marine experience from nearly anywhere1. | Control the most powerful trolling motor available2. |
Create your own maps on the fly and tailor them to fit your needs. |
| General | |
| DIMENSION | 11.4″ x 6.5″ x 2.4″ (26.3 x 16.5 x 6.5 cm) |
| TOUCHSCREEN | yes |
| INPUT | Touchscreen with Keyed Assist |
| DISPLAY SIZE | 7.8″ x 4.8″; 9″ diagonal (19.9 x 11.3 cm; 22.9 cm diagonal) |
| DISPLAY RESOLUTION | 800 x 480 pixels |
| DISPLAY TYPE | WVGA, NP |
| WEIGHT | 2.3 lbs (1.0 kg) |
| WATERPROOF | IPX7 |
| MOUNTING OPTIONS | Bail or flush |
| Maps & Memory | |
| ACCEPTS DATA CARDS | 1 microSD card; 32 GB maximum size |
| WAYPOINTS | 5000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
| Sensors | |
| HAS BUILT-IN RECEIVER | yes |
| RECEIVER | 5 Hz |
| NMEA 2000 COMPATIBLE | yes |
| NMEA 0183 COMPATIBLE | yes |
| GPS | yes |
| SUPPORTS WAAS | yes |
| Built-in Maps | |
| TIDE TABLES | yes |
| Optional Map Support | |
| LAKEVÜ G3 | yes |
| LAKEVÜ G3 ULTRA | yes |
| GARMIN NAVIONICS+™ | yes |
| GARMIN NAVIONICS VISION+™ | yes |
| TOPO | yes |
| STANDARD MAPPING | yes |
| GARMIN QUICKDRAW CONTOURS | yes |
| Chartplotter Features | |
| AIS | yes |
| DSC | yes |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | yes |
| ACTIVECAPTAIN® COMPATIBLE | yes |
| WIRELESS REMOTE COMPATIBLE | yes |
| SAILING FEATURES | yes |
| Sonar Features & Specifications | |
| DISPLAYS SONAR | yes |
| POWER OUTPUT | 500 W |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| CLEARVÜ | built-in 260/455/800/1000/1200 kHz |
| SIDEVÜ | built-in 260/455/800/1000/1200 kHz |
| PANOPTIX™ SONAR | yes |
| LIVESCOPE | yes |
| Connections | |
| NMEA 2000® PORTS | 1 |
| CONNECTIONS NMEA0183 INPUT PORTS | 1 |
| NMEA 0183 INPUT (TX) PORTS | 1 |
| GARMIN MARINE NETWORK PORTS | 1 Panoptix™ port |
| 12-PIN TRANSDUCER PORTS | 1 |
| Electrical Features | |
| POWER INPUT | 9 to 18 Vdc |
| TYPICAL CURRENT DRAW AT 12 VDC | 1.0 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 1.5 A |
| MAXIMUM POWER USAGE AT 10 VDC | 18W |
| in the box | ECHOMAP UHD 92sv with worldwide basemap
GT56UHD-TM transducer Power/data cable Tilt mount with quick release cradle Flush mount Protective cover Hardware Documentation |
